Principle

OA-GZ vertical cabinet air conditioning unit the refrigeration system compressor, condenser, throttling device and evaporator are installed in a vertical cabinet cabinet. With rivers and sea water as the cooling source, the air in the cabin is cooled and dehumidified by the operation of the cooling system of the unit during summer cooling, and the air in the cabin is heated by the work of the electric heater of the unit during winter heating. The fan operation of the unit in the transition season can ventilate the cabin, and the unit has the functions of cooling, dehumidification, heating and ventilation. The side of the unit is also equipped with a fresh air outlet that can directly access some outdoor fresh air.

Charateristic

• Vertical cabinet installation, easy installation, beautiful appearance

• Unit grille direct air supply

• Digital control, easy to operate

• Optional electric heating components

• Anti-corrosion, anti-vibration and anti-shaking design

• Suitable for commercial vessels such as passenger ships, work boats and offshore drilling platforms

Protection function

• Water flow: water pressure protection on the seawater side of the river

• Refrigerant pressure: high and low pressure protection

• Compressor, fan: overload overheating, compressor overheating protection

• Power supply: phase sequence protection

• Electric heater: overload, high temperature, leakage protection

• Indicator light: operation, alarm display

Technical description

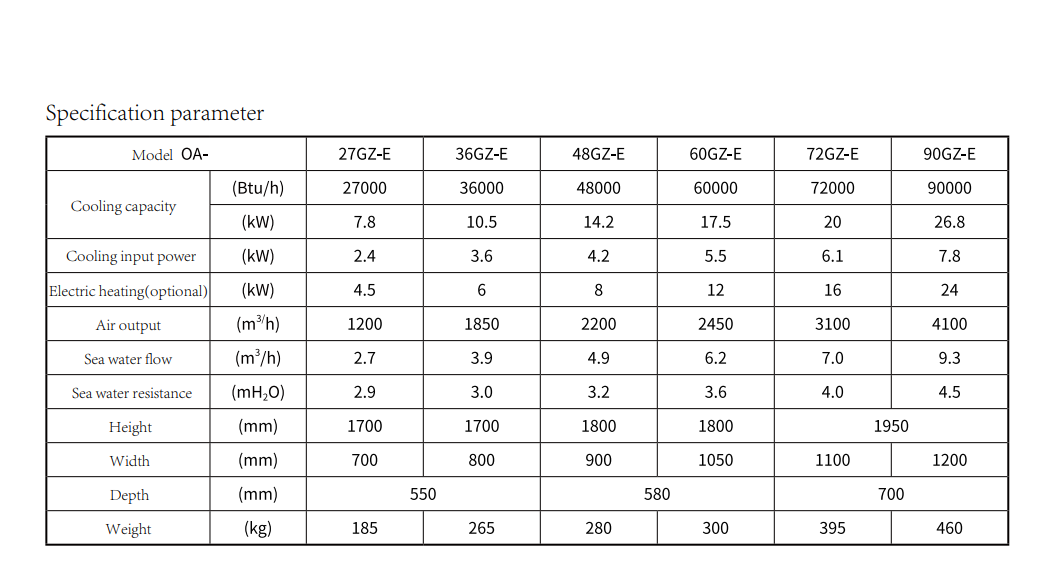

•OA-60GZE12:60 indicates the specification, and the cooling capacity is 60000Btu/h

  E12 means 12KW electric heating

• Power supply 380V/50Hz/3Ph or 440V/60Hz/3Ph

• Effective cooling river and sea water temperature 10~35°C

• Condenser B10/B30 nickel copper tube

• The evaporator selects hydrophilic aluminum foil/copper foil

• Refrigerant R410A/R404A

• Fresh air can be introduced in the side section

• Remote control is optional
