Principle

OC-TCP-KM cassette type open-mounted fan coil as the end of the hot and cold water air conditioning system when the hot and cold water unit provides 7℃ cold water in summer, the cabin air cooling; When the cold and hot water unit provides 45℃ hot water in winter, the cabin air is heated.

Characteristic

•Cassette type open mounting, easy installation, beautiful appearance

•Built-in double condensate lift pump, Marine special patent technology

•Remote control is optional

•Silent fan, three speed adjustment

•Anti-corrosion, anti-vibration and anti-shaking design

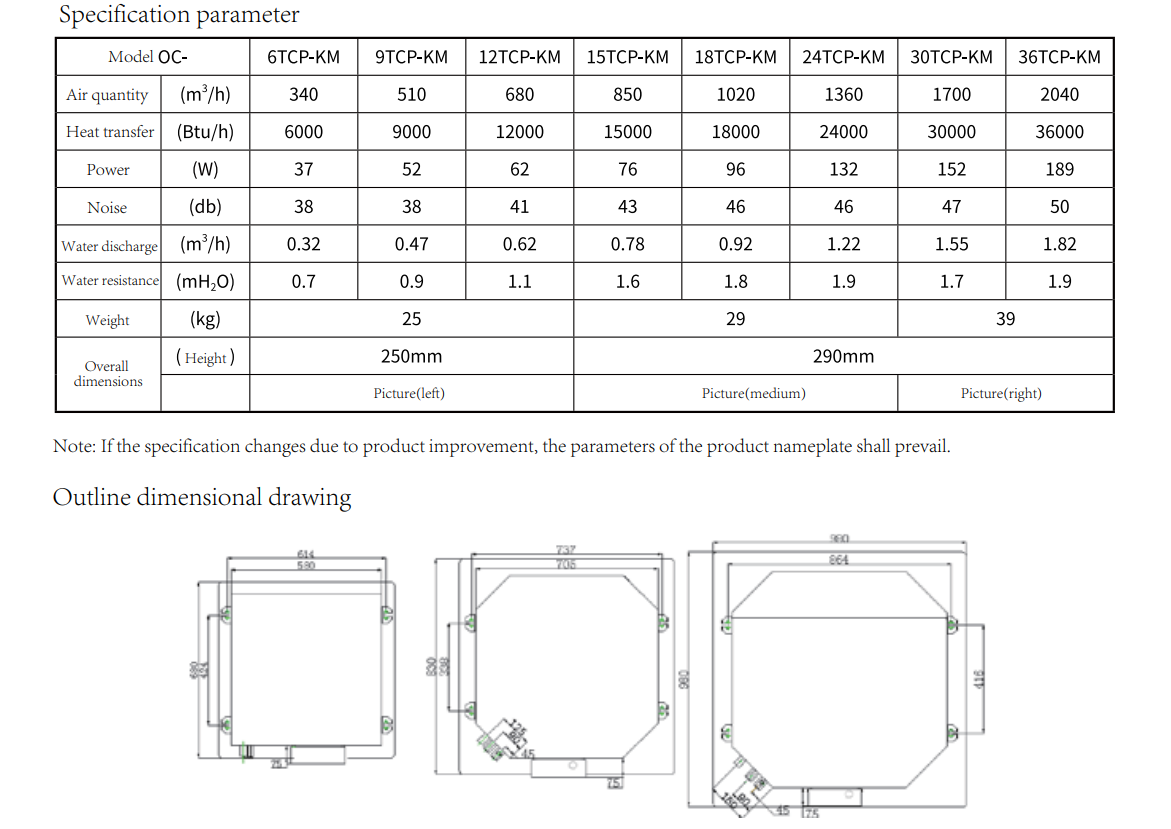

Technical description

•OC-24TCP-KM:24 denotes specifications, and the cooling/heating capacity is 24000Btu/h

                             KM indicates the card type

•Electrical system 220V/50Hz/1Ph

•Heat exchanger material hydrophilic aluminum foil/copper foil

•Standard water pipe connection Rc3/4"

•Optional stainless steel connection hose

•Antifreeze can be added
