Principle

OC-TCP-WA horizontal hidden type fan coil as the end of the hot and cold water air conditioning system when the hot and cold water unit provides 7℃ cold water in summer, cooling the cabin air; When the cold and hot water unit provides 45℃ hot water in winter, the cabin air is heated.

Characteristic

•Thin structure, ceiling concealed, suitable for high floor cabin

•The fan adopts high, medium and low three-speed control

•Built-in vent valve

•Low noise centrifugal fan, three speed control

•The water tray is drained on both sides and is divided into standard type and encircling type

•Can be equipped with fresh air system

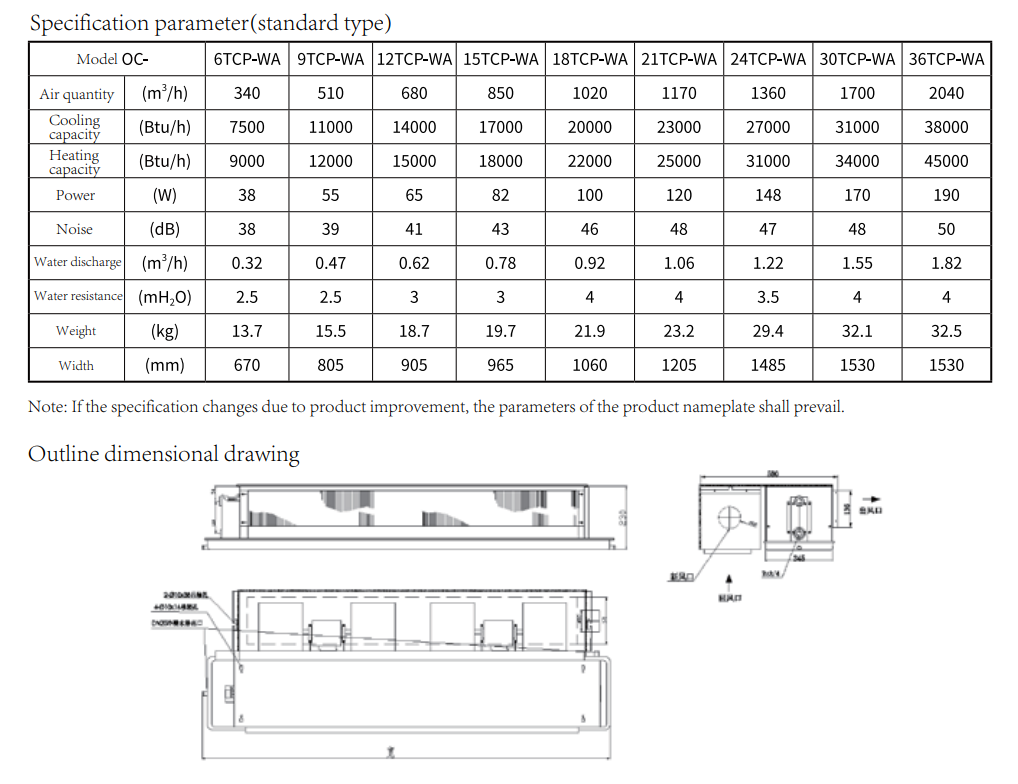

Technical description

•OC-24TCP-WA:24 denotes specifications, and the cooling/heating capacity is 24000Btu/h

                            WA indicates horizontal hidden type

•Electrical system 220V/50Hz/1Ph

•Heat exchanger material hydrophilic aluminum foil/copper foil

•Standard water pipe connection Rc3/4"

•Optional stainless steel connection hose

•Antifreeze can be added
