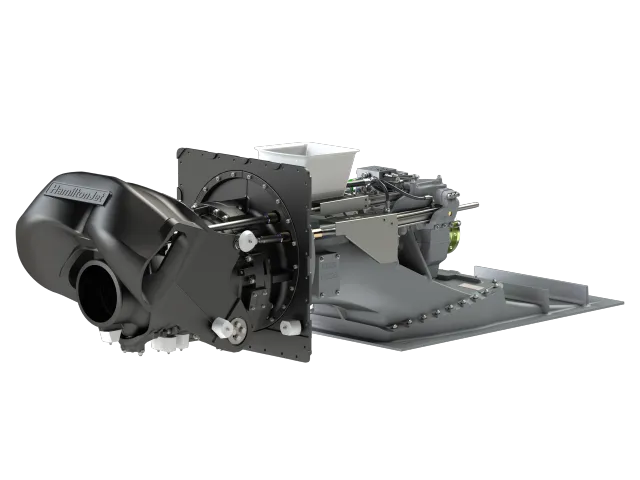

Hamilton HJX Series

Featuring a hydrodynamic design for increased efficiency and materials made to last the distance, the HJX offers exceptional control and ease of installation, making it our most durable and high-performing waterjet to date.

Related Submodels:
HJX27
HJX29
ModelPower
HJX27200-1000kW
HJX29200-1000kW

Product Advantages


  • New hydrodynamic design delivers 3% more high speed efficiency than previous model
  • 25% increase in peak bollard pull than previous model
  • 23 knots better minimum speed.
  • Available with mechanical, HSRX & AVXexpress controls only
  • Increased impeller rating range for more compatibility with wider range of engines


Parameters

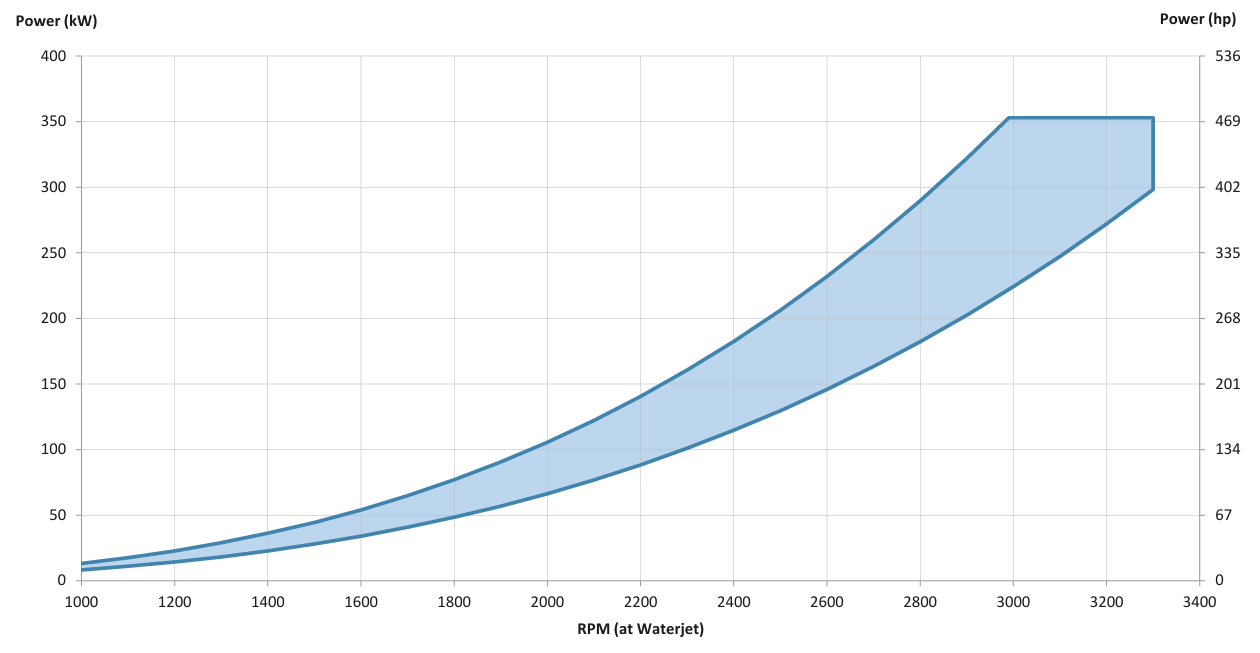

HJX27


  • Power: 353 kW (max)
  • RPM: 2990 rpm (max)
  • Speed: up to 50 Knots
  • Jet Weight (Al 0°): 173 kg (dry)
  • Jet Weight (Al 5°): 179 kg (dry)
  • Entrained water: 45 kg
  • Intake block (Al 0°): 14 kg
  • Intake block (Al 5°): 20 kg
  • Enhanced corrosion protection
  • Compact inboard foot print

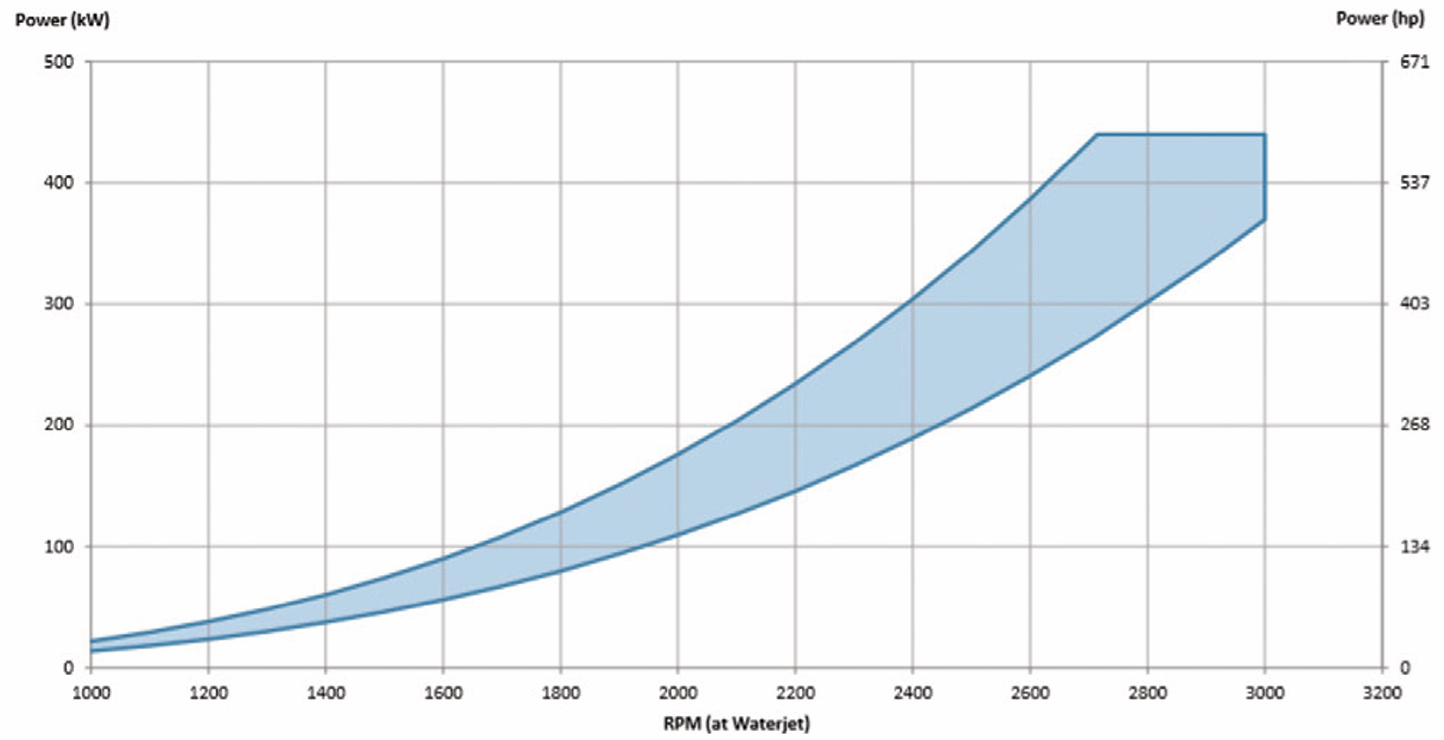

HJX29


  • Power: 440 kW (max)
  • RPM: 3000 rpm (max)
  • Speed: 50 Knots
  • Jet Weight (Al 0°): 200kg (dry)
  • Jet Weight (Al 5°): 200kg (dry)
  • Entrained water: 54kg
  • Intake block (Al 0°): 20.8kg
  • Intake block (Al 5°): 25.9kg
  • LCG (dry fwd of transom): 47mm
  • LCG (wet fwd of transom): 177.5mm
