OA-GZ Series

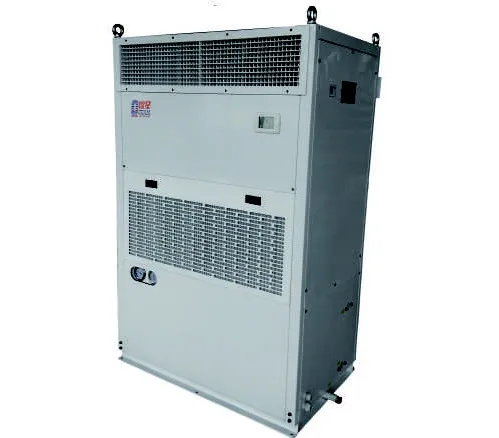

Principle The OA-GZ vertical cabinet-type air conditioning unit integrates the compressor, condenser, throttle device, and evaporator of the refrigeration system within a single vertical cabinet enclosure. Utilizing river, lake, or seawater as the cooling source, the unit operates its refrigeration system during summer to cool, dehumidify, and lower the temperature of the air inside the cabin. During winter heating, the unit's electric heater operates to warm and raise the temperature of the cabin air. In transitional seasons, the unit's fan operates to provide ventilation for the cabin. The unit possesses the functions of cooling, dehumidification, heating, and ventilation. Additionally, a fresh air inlet is provided on the side of the unit, allowing for the direct introduction of outdoor fresh air.
| Model | Btu/h | Power | Cooling input power | Heating input power |
|---|---|---|---|---|
| OA-27GZ-E | <96000 | -- | 2.4-20kW | 2.4-20kW |
| OA-36GZ-E | <96000 | -- | 2.4-20kW | 2.4-20kW |
| OA-48GZ-E | <96000 | -- | 2.4-20kW | 2.4-20kW |
| OA-60GZ-E | <96000 | -- | 2.4-20kW | 2.4-20kW |
| OA-72GZ-E | <96000 | -- | 2.4-20kW | 2.4-20kW |
| OA-90GZ-E | <96000 | -- | 2.4-20kW | 2.4-20kW |
Features
- Vertical cabinet-type surface-mounted design, easy to install and aesthetically pleasing.
- Direct air supply through the unit's grille.
- Digital controls for user-friendly operation.
- Optional electric heating assembly.
- Corrosion-resistant, anti-vibration, and anti-sway design.
- Suitable for commercial vessels such as passenger ships, workboats, and offshore drilling platforms.
Protection Features
- Water Flow: Water pressure protection for the river/lake/seawater side.
- Refrigerant Pressure: High-pressure and low-pressure protection.
- Compressor & Fan: Overload and overtemperature protection; compressor overtemperature protection.
- Power Supply: Phase sequence protection.
- Electric Heater: Overload, overtemperature, and ground fault (leakage) protection.
- Indicators: Operational and alarm indication.
Technical Specifications
Model: 0A-60GZE12
- 60: Denotes model series with a cooling capacity of 60,000 Btu/h.
- E12: Indicates the unit is equipped with a 12 kW electric heater.
- Power Supply: 380V / 50Hz / 3 Phase or 440V / 60Hz / 3 Phase.
- Effective Cooling Water (River/Lake/Sea) Temperature: 10°C to 35°C.
- Condenser: B10/B30 cupronickel tubes.
- Evaporator Options: Hydrophilic aluminum fins / copper tubes.
- Refrigerant: R410A / R404A.
- Fresh Air: Can be partially introduced from the side.
- Optional: Remote control.

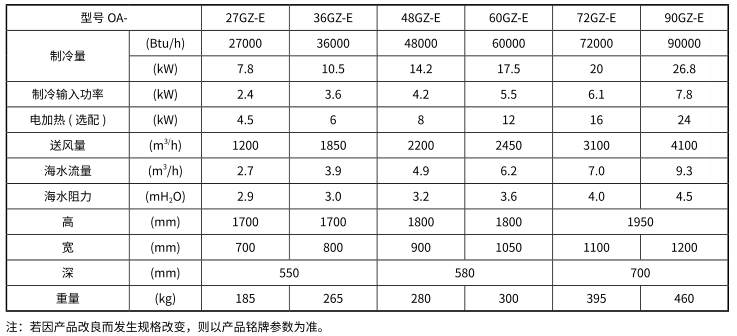

Specifications:
