OA-GZH Series

Principle The OA-GZH vertical cabinet-type air conditioning unit integrates the compressor, condenser, four-way reversing valve, throttle device, and evaporator of the refrigeration system within a single vertical cabinet enclosure. Utilizing river, lake, or seawater as the cooling source, the unit operates its refrigeration system during summer to cool, dehumidify, and lower the temperature of the cabin air. During winter, heating is achieved through the operation of the unit's heat pump system to warm the cabin air. In transitional seasons, the unit operates in ventilation mode using its fan. The unit provides cooling, dehumidification, heating, and ventilation functions. A fresh air inlet is also provided on the side of the unit for the direct introduction of outdoor air.

Related Submodels:
OA-24GZH
OA-36GZH
OA-48GZH
ModelBtu/hPowerCooling input powerHeating input power
OA-24GZH<96000AC380V/50Hz2.4-20kW2.4-20kW
OA-36GZH<96000AC380V/50Hz2.4-20kW2.4-20kW
OA-48GZH<96000AC380V/50Hz2.4-20kW2.4-20kW

Features

  • Vertical cabinet surface-mounted design, easy to install and aesthetically pleasing.
  • High external static pressure for ducted air supply.
  • Digital controls for easy operation.
  • Heat pump design for energy efficiency.
  • Corrosion-resistant, anti-vibration, and anti-sway construction.
  • Suitable for commercial vessels such as passenger ships, workboats, and offshore drilling platforms.

Protection Features

  • Water Flow: Water pressure protection on the river/lake/seawater side.
  • Refrigerant Pressure: High-pressure and low-pressure protection.
  • Compressor & Fan: Overload and overtemperature protection, including compressor overheating protection.
  • Power Supply: Phase sequence protection.
  • Electric Heater: Overload, overtemperature, and ground fault (leakage) protection.
  • Indicators: Operation and alarm display.

Technical Specifications

Model: OA-24GZH

  • 24: Denotes the model series with a cooling capacity of 24,000 Btu/h.
  • Power Supply: 380V / 50Hz / 3 Phase
  • Effective Water Source Temp. (River/Lake/Sea): 3°C ~ 35°C
  • Condenser Material: B10/B30 Cupronickel Tubes
  • Evaporator Material: Hydrophilic aluminum fins / Copper tubes
  • Refrigerant: R410A
  • Fresh Air: Can be partially introduced from the side.

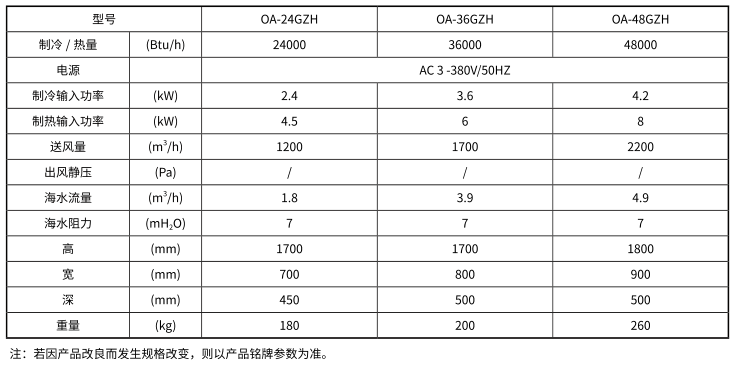

Specifications:
