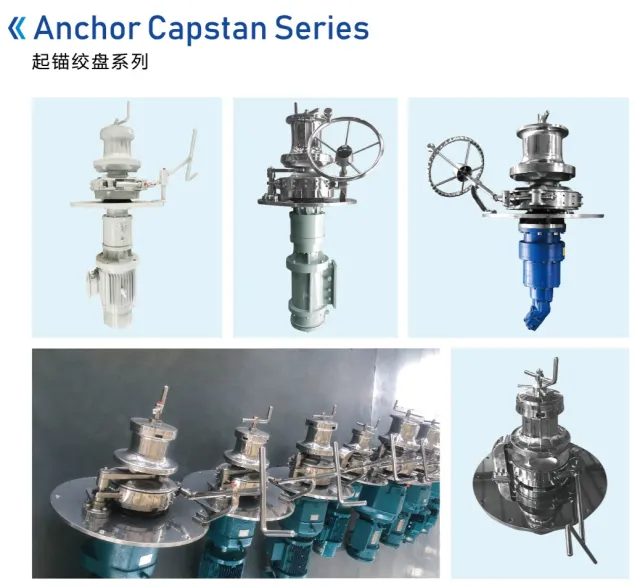

Anchor Capstan Series
Principle: The anchor winch is a power driven device installed on a vertical shaft, which converts the rotation of the power source into a huge torque through a deceleration transmission system, thereby winding or releasing the anchor chain to complete the anchoring, anchoring, and mooring operations.
Related Submodels:
| Model | Chain Diameter | Rated Load | Holding Load |
|---|---|---|---|
| DMJ12.5-9 | 12.5-20.5mm | 5-20kN | 40-110kN |
| DMJ14-9 | 12.5-20.5mm | 5-20kN | 40-110kN |
| DMJ16-9 | 12.5-20.5mm | 5-20kN | 40-110kN |
| DMJ17.5-9 | 12.5-20.5mm | 5-20kN | 40-110kN |
| DMJ19-9 | 12.5-20.5mm | 5-20kN | 40-110kN |
| DMJ20.5-9 | 12.5-20.5mm | 5-20kN | 110-200kN |
| DMJ22-9 | 12.5-20.5mm | 20-50kN | 110-200kN |
| DMJ24-9 | 22-30mm | 20-50kN | 110-200kN |
| DMJ26-9 | 22-30mm | 20-50kN | 110-200kN |
| DMJ28-9 | 22-30mm | 20-50kN | 200-400kN |
| DMJ30-9 | 22-30mm | 20-50kN | 200-400kN |
| DMJ32-52 | -- | -- | -- |
- Features: high load and high reliability; Waterproof and anti-corrosion design; Multiple power sources are compatible.
- Technical description: Anchoring speed ≥ 9m/min; Anchor chain diameter: 12.5mm~52mm; Drive form: D electric, Y hydraulic; Anchor chain wheels with a diameter of less than 30mm are made of precision castings, including cast steel and 316L stainless steel, to make the products more aesthetically pleasing and lighter in weight; The anchoring speed shall be in accordance with the specifications. If there are special requirements, they shall be specified when ordering, and can be customized according to customer requirements.

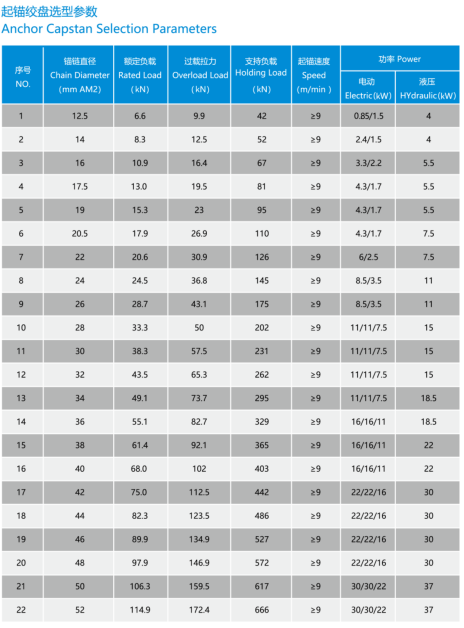

- Specifications:
