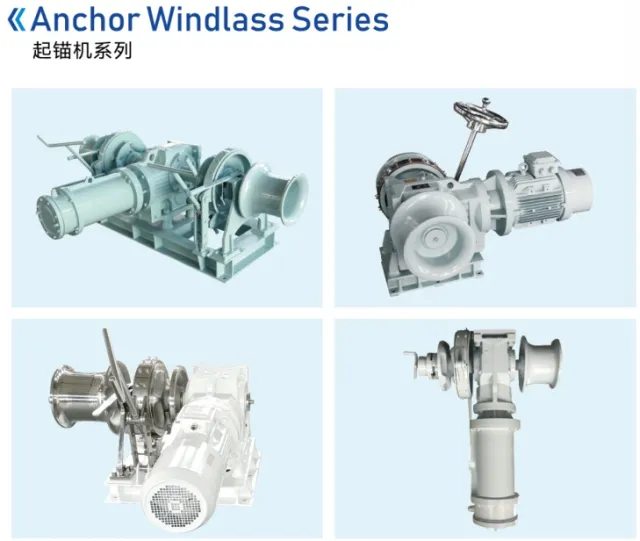

Windlass Seires
Principle: The anchor windlass converts power (electric or hydraulic) into enormous torque through a reduction mechanism, thereby retracting the anchor chain.
Related Submodels:
| Model | Chain Diameter | Rated Load | Holding Load |
|---|---|---|---|
| OC100-72-X | 12.5-20.5mm | 5-20kN | 40-100kN |
| OC112-72-X | 12.5-20.5mm | 5-20kN | 40-100kN |
| OC128-72-X | 12.5-20.5mm | 5-20kN | 40-100kN |
| OC140-72-X | 12.5-20.5mm | 5-20kN | 40-100kN |
| OC152-72-X | 12.5-20.5mm | 5-20kN | 40-100kN |
| OC164-72-X | 12.5-20.5mm | 5-20kN | 100-200kN |
| OC176-72-X | 22-30mm | 20-40kN | 100-200kN |
| OC192-72-X | 22-30mm | 20-40kN | 100-200kN |
| OC208-72-X | 22-30mm | 20-40kN | 100-200kN |
| OC224-72-X | 22-30mm | 20-40kN | 200-400kN |
| OC240-72-X | 22-30mm | 20-40kN | 200-400kN |
- Features: Strong load capacity, multifunctional integration, reliable safety braking, intelligent control, and real-time status monitoring
- Technical description: Number of sprockets: S single chain sprocket, D double chain sprocket; Anchoring speed ≥ 9m/min; Anchor chain diameter: 12.5mm~60mm; Drive form: D electric, Y hydraulic, C diesel engine

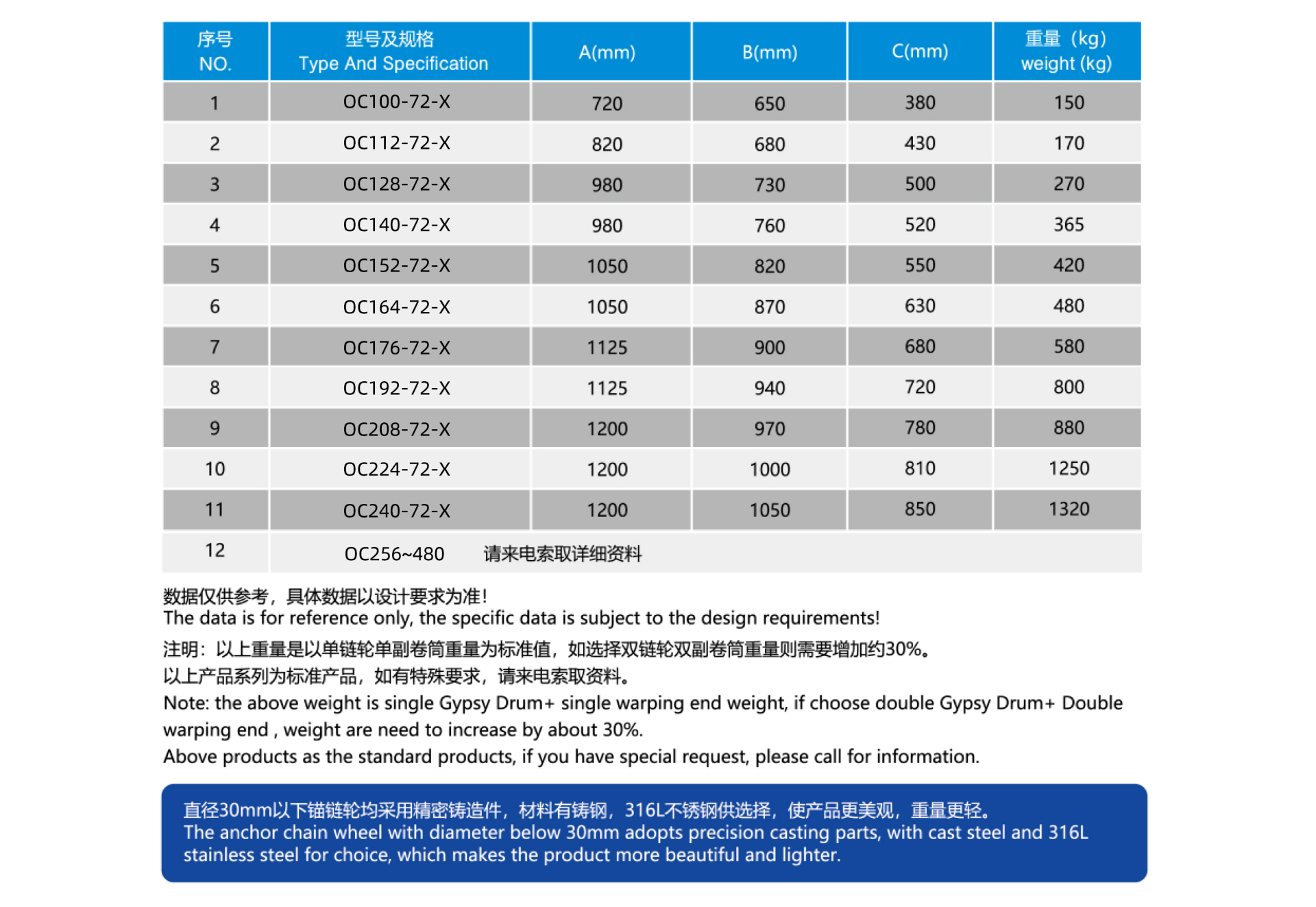

- Specifications:
